GHOST 200  Electromechanical underground automation for swing gates

Ghost 200 is the heatest solution for the automation of swing gates.

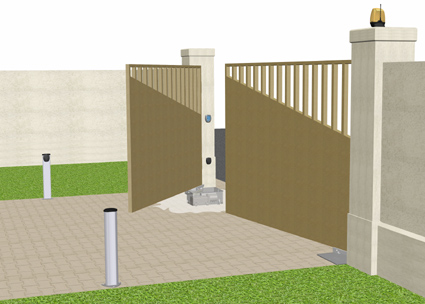

The underground fitting does not modify shape and design of the gate.

The sturdiness of the operator and the precision of movement make Ghost 200 a elite automation.

# Suitable for leafs up to 3.5 m long.

# Undergound fitting

# Very sturdy and watertight seal.

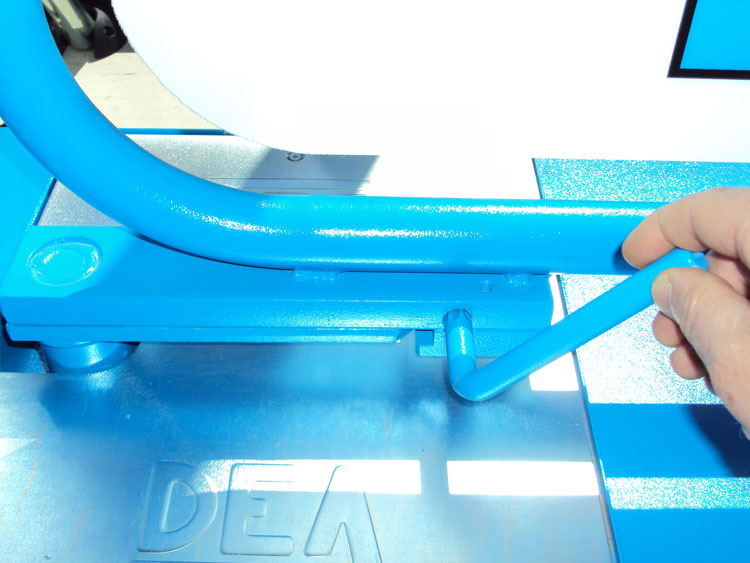

# Simle and safe unlocking system by special key, both internal and external.

# Grease soaked gear motor.

# Quick and silent.

# Opening up to 180* (optional).

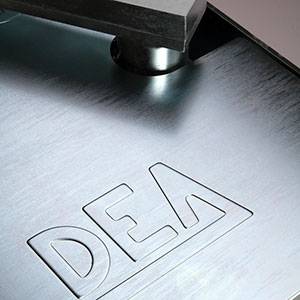

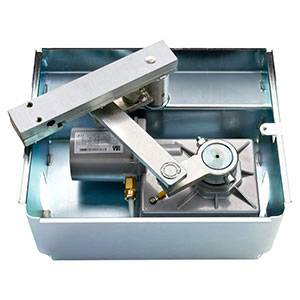

# Galvanized foundation case.

Technical information

Power supply 230 vac 50/60 Hz

Motor power supply 230 vac

Capacity 400 w

Condenser 12.5 uF

Protection lever (IP) 67

Max torque (Nm) 320

Operating temperature - 20 + 60 *C

Motor thermal protection 150 *C

Duty cycle 35%

Opening time (sec.90*) 17

Weight with packing 14.5 kg

Dmensions  420mm X 345 mm X 225mm
