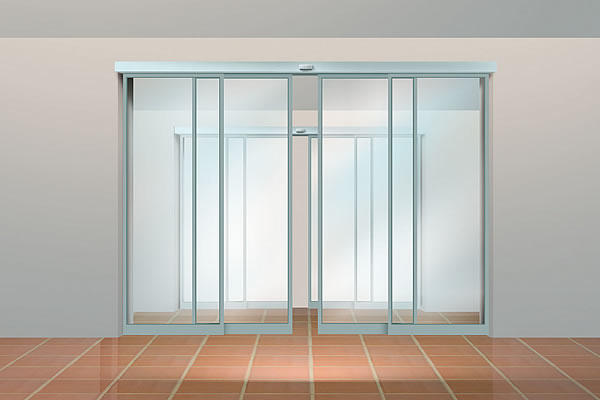

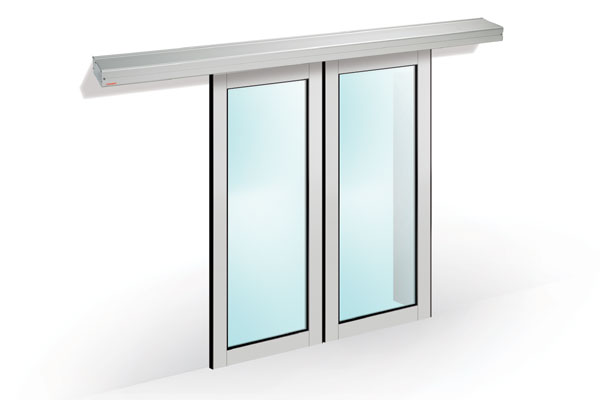

The automated mechanisms for rapid sliding doors, designed for several fields of use, rapid and silent movements.

The doors are guaranteed to stop even in front of the smallest obstacle and a manual release of the system is envisaged in case the electrical supply is interrupted.

TECHNICAL DATA

POWER SUPPLY                                                230VAC +/- 10% - 50/60 HZ

DUTY CYCLES                                                    INTENSIVE

ABSORBED POWER                                         150 W MAX

PERIPHERALS POWER SUPPLY                   24 VDC - 630  MAX

MAIN SUPPLY FUSE 230 VAC                         T4 A - 5x20

BATTERY FUSE                                                  10 A - BLADE

SERVICE CONTACT                                          RELAY MAX.6A

MAXIMUM LOAD CAPACITY FOR 1 DOOR    1 LEAF=240 KG

MAXIMUM LOAD CAPACITY FOR 2 DOORS  2 LEAVES=120+120 KG

OPERATING TEMPERATURE RANGE           - 20*C + 50*C

ACCELERATION                                                 ELECTRONIC ADJUSTMENT

IMPULSE FORCE                                               ELECTRONIC ADJUSTMENT

OBSTACLE DETECTION                                  ELECTRONIC ADJUSTMENT
